Triangle Delta AK II 1230
The base triangles for the flat roof elevation are pre-assembled for quick installation.
Material:
Aluminum EN AW-6063 T6
Material screw connection:
Stainless steel A2-70
Transport dimensions:
93 x 44.4 x 1230 mm
| Elevation | Dimensions assembled H x L | weight | Item no. |
|---|---|---|---|

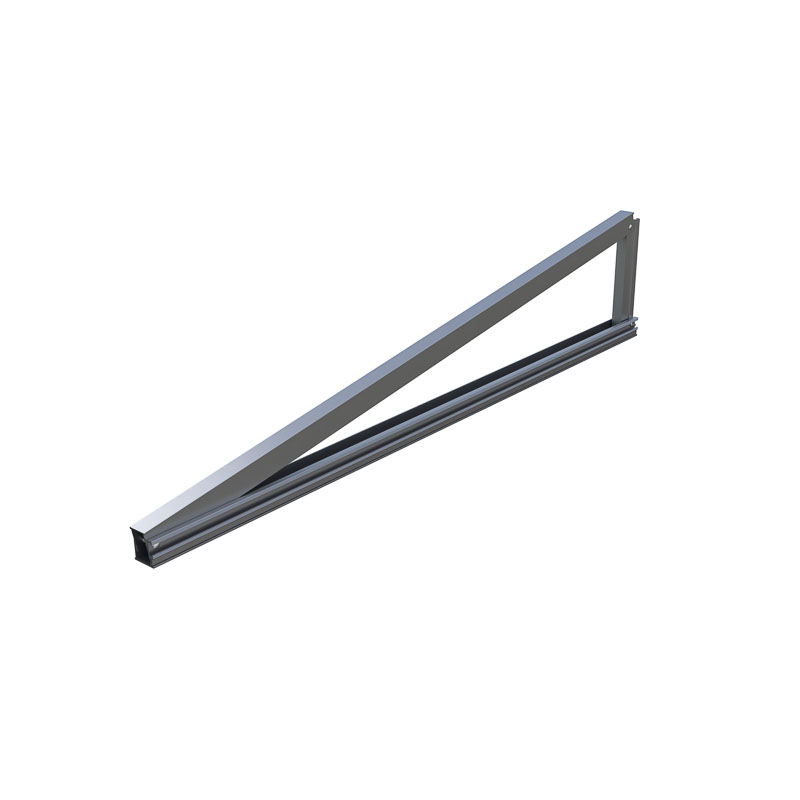

| 10° | 265.4 x 1230 mm | 2,038 kg | 720-300-121 |
| 15° | 368.6 x 1230 mm | 2,109 kg | 720-300-122 |
| 20° | 469.2 x 1230 mm | 2,180 kg | 720-300-123 |
| 25° | 566.4 x 1230 mm | 2,250 kg | 720-300-124 |
| 30° | 659.5 x 1230 mm | 2,318 kg | 720-300-125 |
| 35° | 747.8 x 1230 mm | 2,387 kg | 720-300-126 |
| 40° | 830.6 x 1230 mm | 2,454 kg | 720-300-127 |
| 45° | 907.0 x 1230 mm | 2,520 kg | 720-300-128 |
720-300-124 • S:FLEX Delta AK II 1230 25°

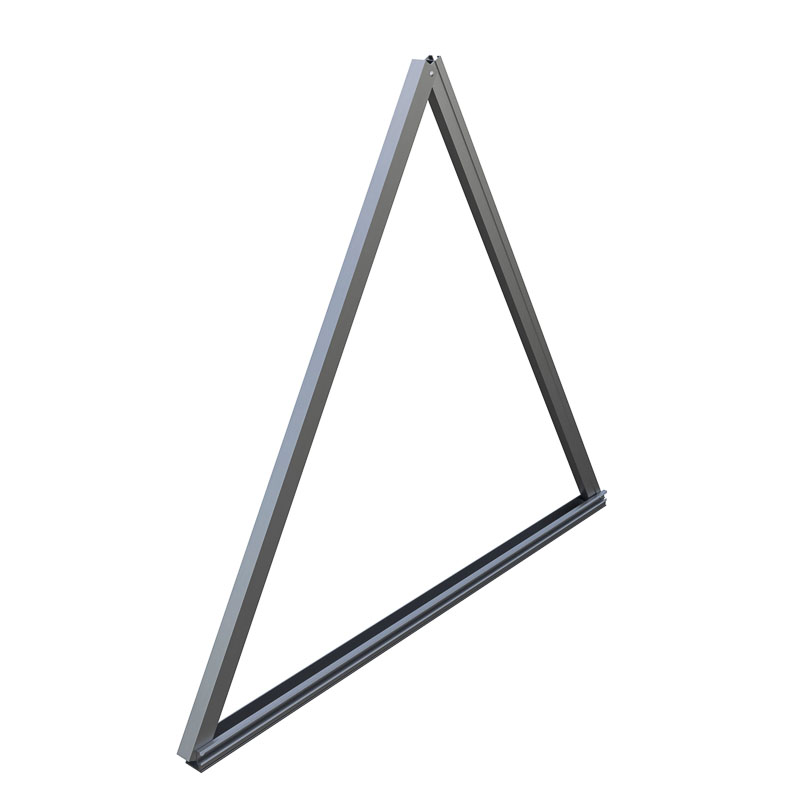

720-300-131 • S:FLEX Delta AK II 1230 60°
