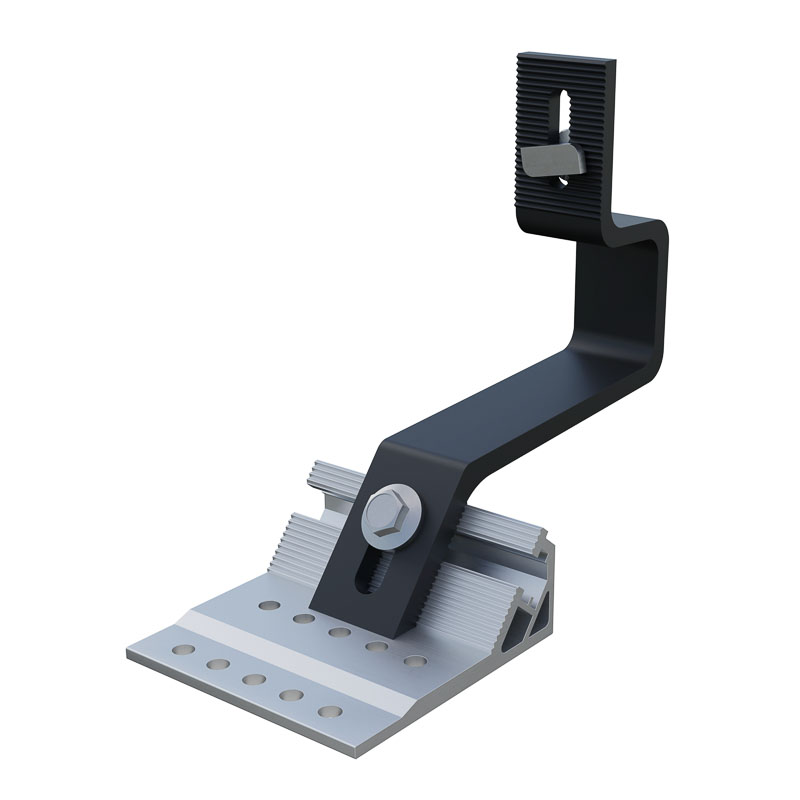

Roof hook Alu 93-7-45

Our roof hooks combine maximum load-bearing capacity and low weight, are adjustable in height and sideways and are easy to install. The corrugation and slotted hole design ensure that the system support is fastened securely and positively.

Material aluminum
EN AW-6082 T6

Material screw connection
Stainless steel A2-70

Base plate
93 x 95 x 40 mm; drilling 10 x 7 mm

Roof covering type
Tile and pantile

max. height compensation
45 to 58 mm in roof panel area; 21 mm in rail area

Weight
0.456 kg

Article supplement
Pre-assembled; incl. hammerhead bolt set M8x25
