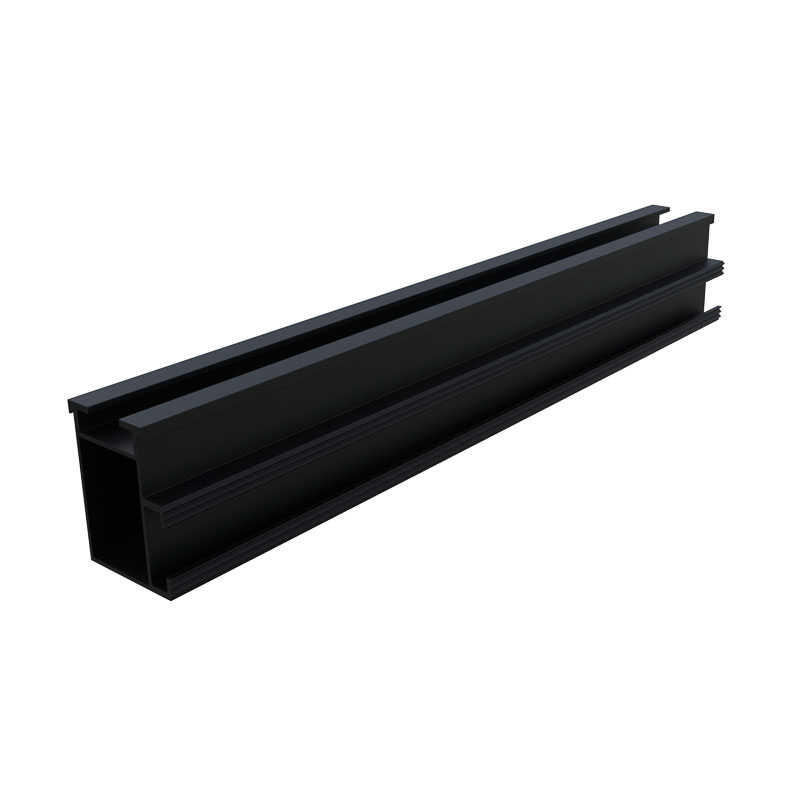

Mounting rail ST-AK 7/47
S:FLEX systems use particularly lightweight, statically optimized hollow chamber rails in various cross-sections and lengths with click technology to accommodate the end and middle fixings.
Material:
Aluminum EN AW-6063 T6
max. moment of inertia Ix:
7,709 cm4
max. section modulus Wx:
3,155 cm3
Dimensions H x W:
47 x 35.4 mm
| length | Color | Weight | Item no. |
|---|---|---|---|
| 6200 mm | mill finished | 4,607 kg | 30-107-015 |
| 4405 mm | mill finished | 3,273 kg | 30-107-440 |
| 3600 mm | millfinished | 2,675 kg | 30-107-360 |
| 3600 mm | black | 2,675 kg | 30-107-361 |
| 3300 mm | mill finished | 2,452 kg | 30-107-330 |
| 3300 mm | black | 2,452 kg | 30-107-032 |
| 2380 mm | mill finished | 1,768 kg | 30-107-038 |
| 2380 mm | black | 1,768 kg | 30-107-037 |
30-107-015 • Mounting rail ST-AK 7/47 l=6200
