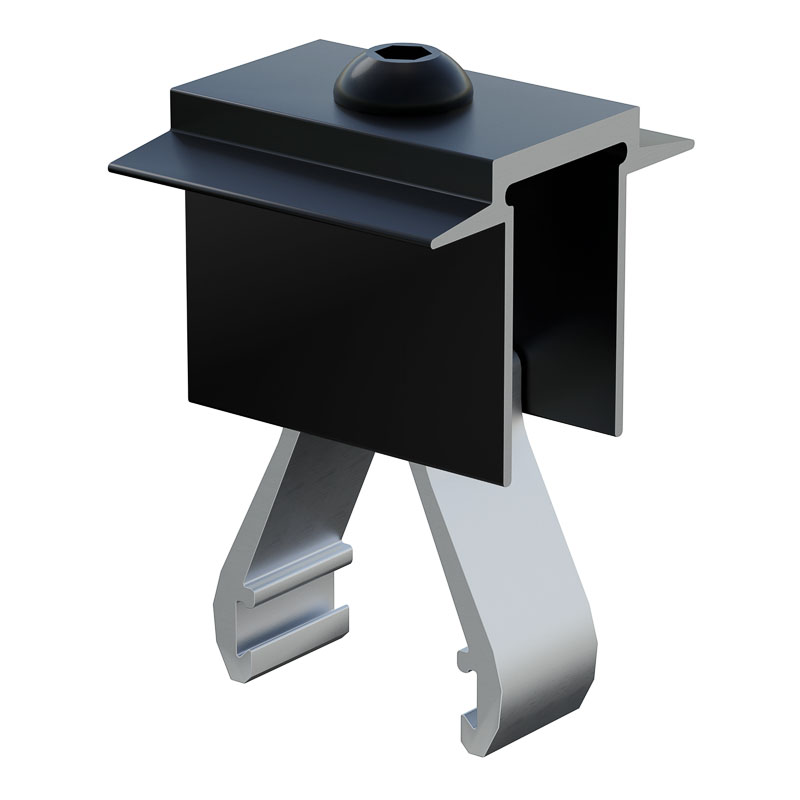

Module clamp AK II Klick 30-50
S:FLEX module holders have an extremely wide clamping range and are therefore suitable for all standard modules and frame heights of 30-50 mm. High torsion resistance and the latest, particularly smooth-running click technology make installation quick and easy.
Material Aluminum
EN AW-6063 T6
Material of screw
Stainless steel A2-70 A
Module frame height
30 – 50 mm
Distance b/w modules
19 mm
Article supplement
pre-assembled
Options
| Option | Colour | Weight | Art.-No. |
|---|---|---|---|
| l=40 mm | mill finished | 0,049 kg | 30-400-049 |
| l=40 mm | black | 0,049 kg | 30-400-066 |
| l=40 mm with grounding plate | mill finished | 0,057 kg | 30-400-082 |
| l=80 mm | mill finished | 0,070 kg | 30-400-056 |
30-400-049 • Mid clamp AK II Klick 30-50 A
