Angle

Material:
Aluminum EN AW-6063 T6

Screw connection material:
Stainless steel A2-70

Article supplement:
pre-assembled;
incl. hammerhead bolt set M 8×25

Variant Foot bore weight Item no.
40mm, M8 complete for 8 mm screws 0.099 kg 30-700-004
60mm, M10 complete for 10 mm screws 0.087 kg 30-700-020
60mm, M12 complete for 12 mm screws 0.086 kg 30-700-018
30-700-020 • Bracket 60mm, M10
30-700-020 • Bracket 60mm, M10

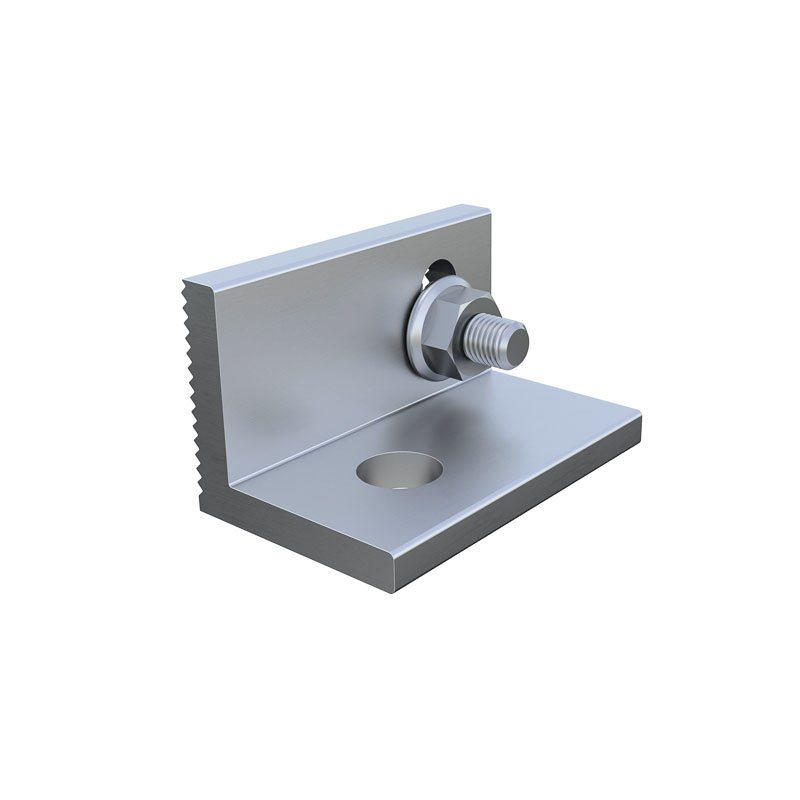

30-700-018 • Bracket 60mm, M12
30-700-018 • Bracket 60mm, M12

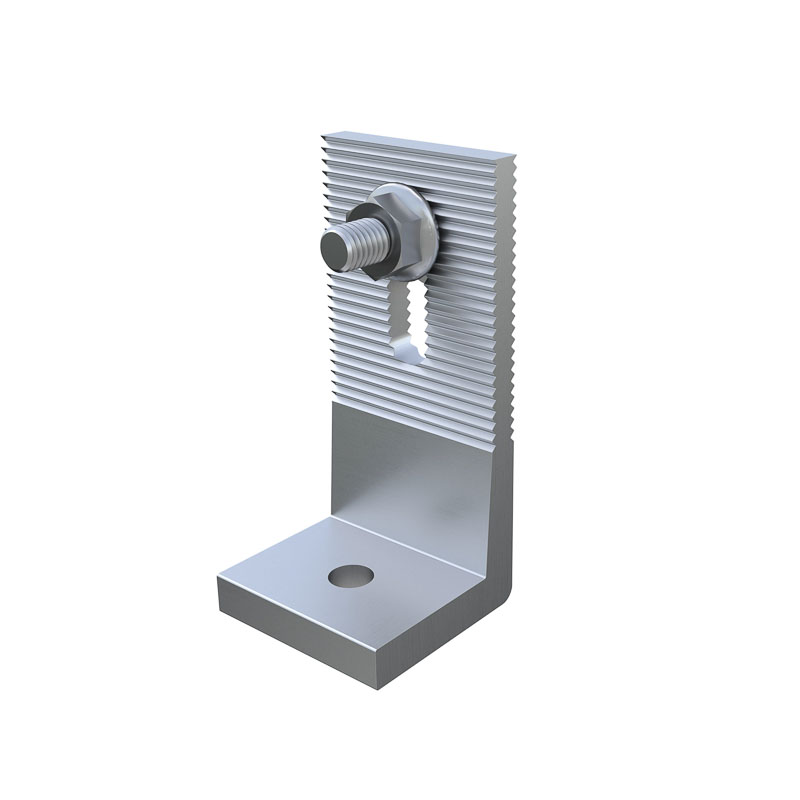

30-700-004 • Brackets 40mm, M8
30-700-004 • Brackets 40mm, M8
