S:FLEX Triangle Delta and hanger bolts

For trapezoidal sheet-, corrugated fibre cement- and sandwich roofs

Data

  • Application:
    On flat pitched and pitched roofs with trapezoidal sheet metal, corrugated fiber cement and sandwich elements roofing

  • Module type:
    Framed and frameless modules

  • Module orientation:
    upright / horizontal

  • Angle of attack:
    available in 5° increments from 5° to 45°, other angles available on request

Advantages

  • Variable and freely selectable position and size of the module field

  • Also ideal for small systems with 1, 2, 4 or 8 modules

  • Low transportation and storage costs due to folded triangles (pallet dimensions)

Components

Nine different angles of attack for more yield

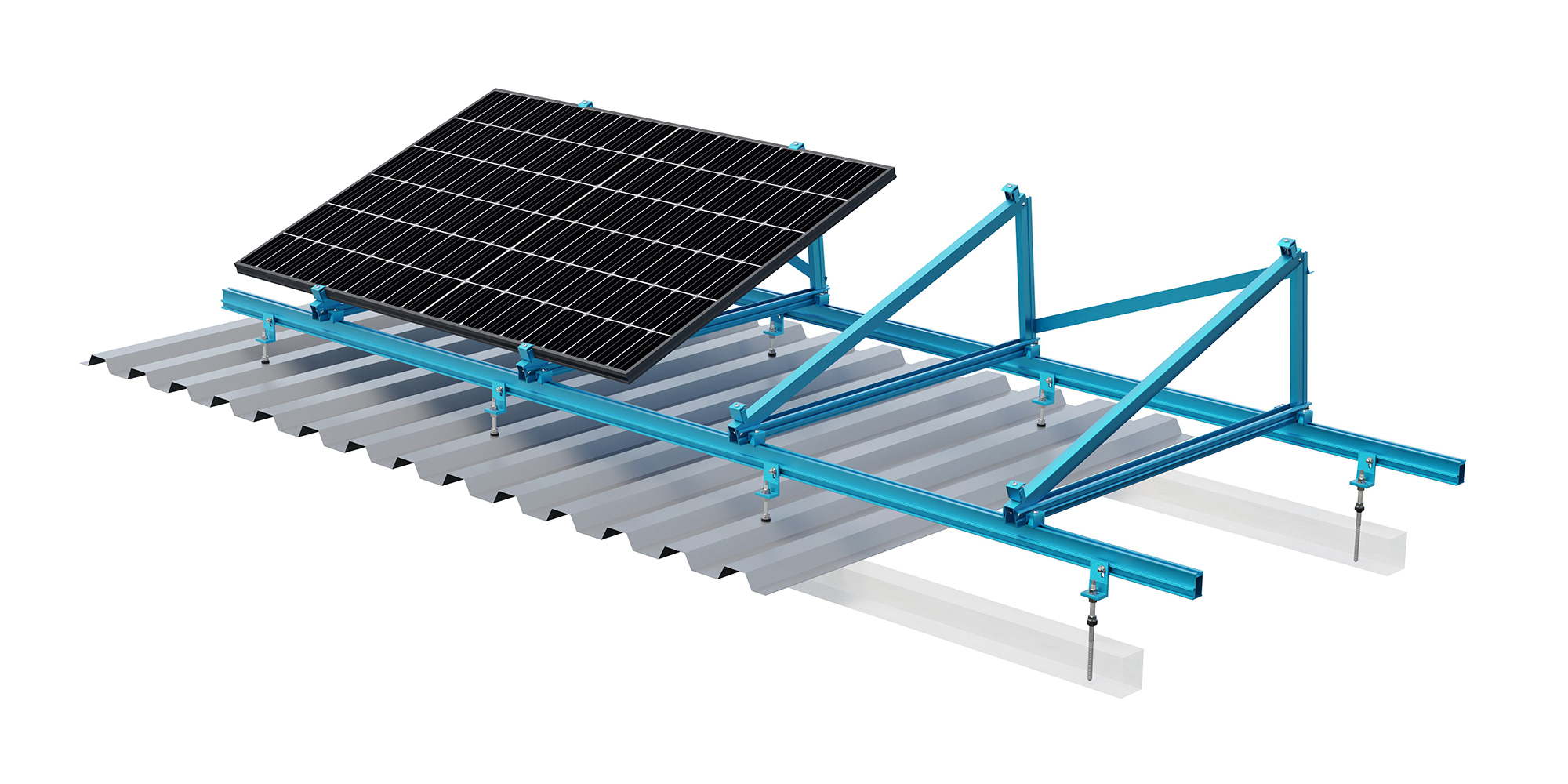

The S:FLEX Delta triangle, mounted with hanger bolts, is ideal for mounting the system on low-sloped roofs with corrugated fiber cement roofing. The triangles are available with nine different pitch angles from 5° to 45° – other angles are possible.

The pre-assembled triangles are supplied folded up to save space and costs and can also be used on sandwich and trapezoidal sheet metal roofs with this connection.

The easiest way to make flat roofs usable for photovoltaics

The S:FLEX on-roof frame with ballasting is the simple and proven solution for penetration-free, green roof-compatible flat roof installations. Depending on the planned system and the conditions on site, the fastening variants and ballasting can be selected variably.

For flat roofs without roof superstructures and regions with high wind loads, we recommend mounting the Delta triangles on ground rails for ballast support. Particularly high ballasting can also be distributed flexibly on the rails.

For roofs with lower load reserves and roof superstructures where longer rails cannot be easily laid, the triangles are fastened directly to ballast blocks/stone slabs.

Installing the substructure with the S:FLEX Delta triangles with the universally standardized click installation principle and ballast such as weighting stones, gravel or green roof granulate means absolute roof tightness and easy dismantling. It offers all the advantages of an elevated solution. In addition to problem-free maintenance and easy access to the roof surface and PV system, high system efficiencies are also guaranteed thanks to optimum rear ventilation.
