sflex roof mounting kit
Fast and versatile modular solution for your pitched roof PV installations
Data
Application:
Pitched roof with roof tiles/roof tiles, optionally available for beaver, slate and sheet metal roofing
Module type:
framed modules
Module orientation:
upright, optionally also available for transverse mounting
Advantages
Flexible and universal application thanks to basic packages and extension sets with all components for individual configurations
Minimal planning effort without the time-consuming creation of parts lists
Short-term availability, low delivery costs and excellent shelf life
Quick assembly thanks to sophisticated technology and numerous pre-assembled parts

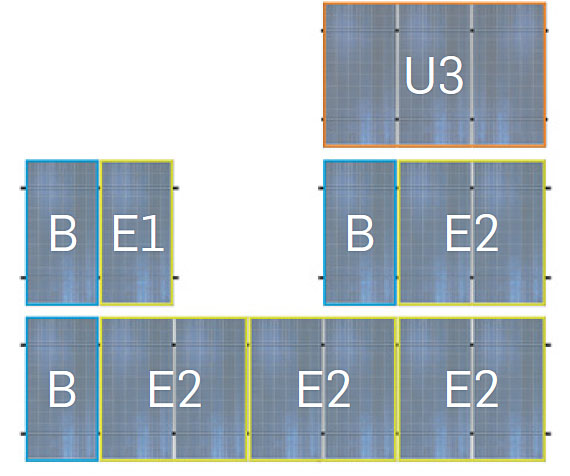

Examples of kit combinations
The kits and their components
| Set | Rails | Cut cover | Connector | Roof hoe | Module holder | End bracket | Timber construction- screws |
|---|---|---|---|---|---|---|---|
| Basis 1 Module - B - |
2 | 4 | 4 | 4 | 12 | ||
| Extension 1 module - E1 - |
2 | 2 | 3 | 2 | 9 | ||
| Extension 2 modules - E2 - |
4 | 4 | 6 | 4 | 18 | ||
| Universal 3 modules - U3 - |
4 | 4 | 2 | 10 | 6 | 4 | 30 |
The sflex roof mounting kit is more than just a quick standard solution.
The sflex roof mounting kit enables simple and flexible installation of framed PV modules in a vertical orientation on pitched roofs of old and new buildings with tiled roofs. It contains all the components necessary for installing up to three modules (approx. 1 kW) and offers options for various roof coverings.
Pre-assembled kits eliminate the need for time-consuming planning, which shortens installation time and ensures smooth processes on the construction site. The lightweight, compact materials reduce shipping costs and improve storage.
Universal, height-adjustable module brackets and sflex click technology make it easy to install almost all types of framed modules. All kits comply with the relevant standards and certifications, offer a 10-year warranty on material durability and include detailed installation instructions.
So stellen die sflex kits eine effiziente und benutzerfreundliche Lösung für die PV-Anlagenmontage dar.
