sflex carport

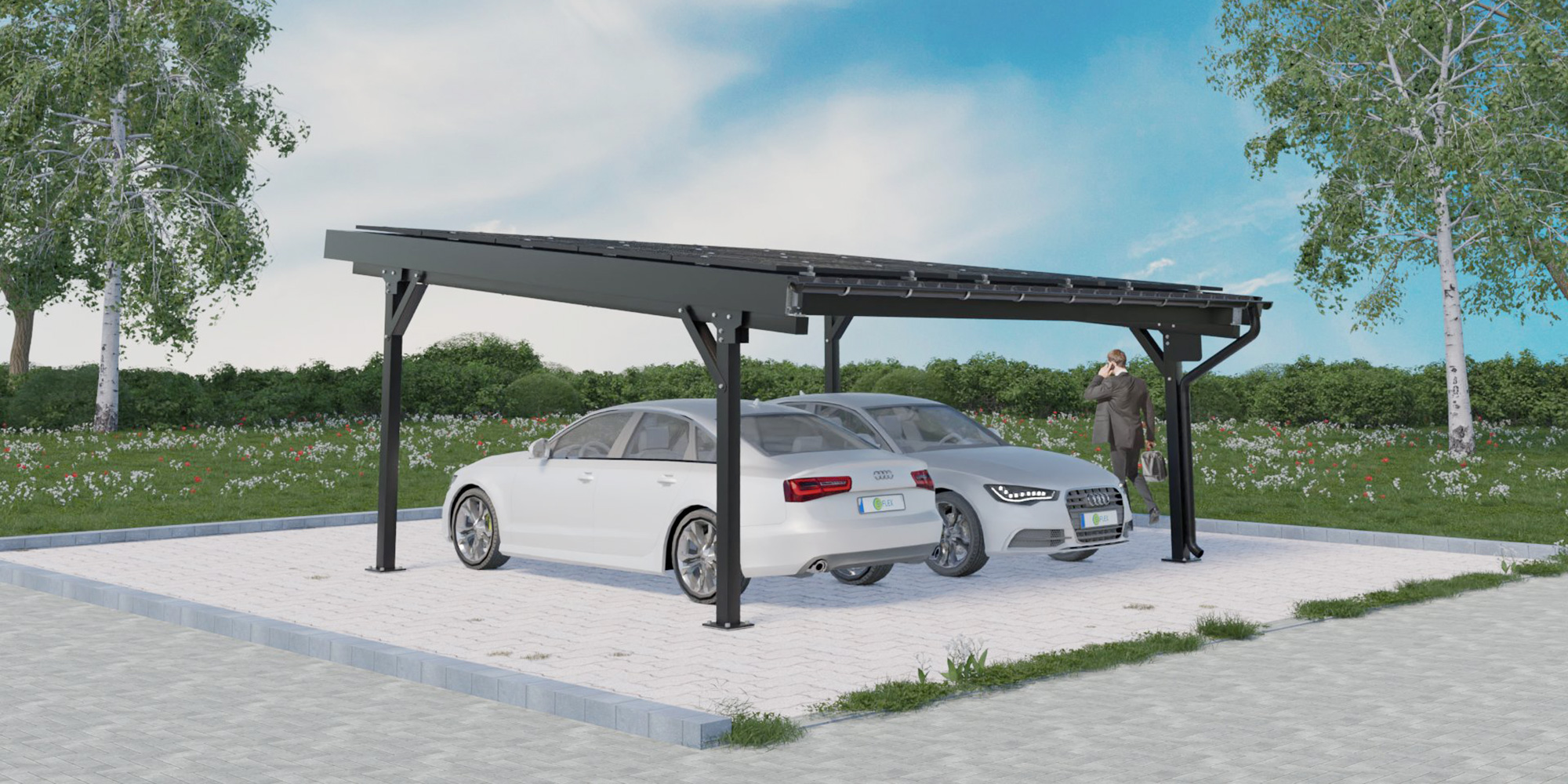

Solar carport in segment design with one, two or up to 24 parking spaces
Data
Parking spaces:
1 or 2 parking spaces, modularly expandable to up to 12 freely combinable single/double segments for a maximum of 24 parking spaces
Connection:
Anchored in the ground / concrete
Roof pitch:
6°
Module orientation:
landscape / portrait
Module field size:

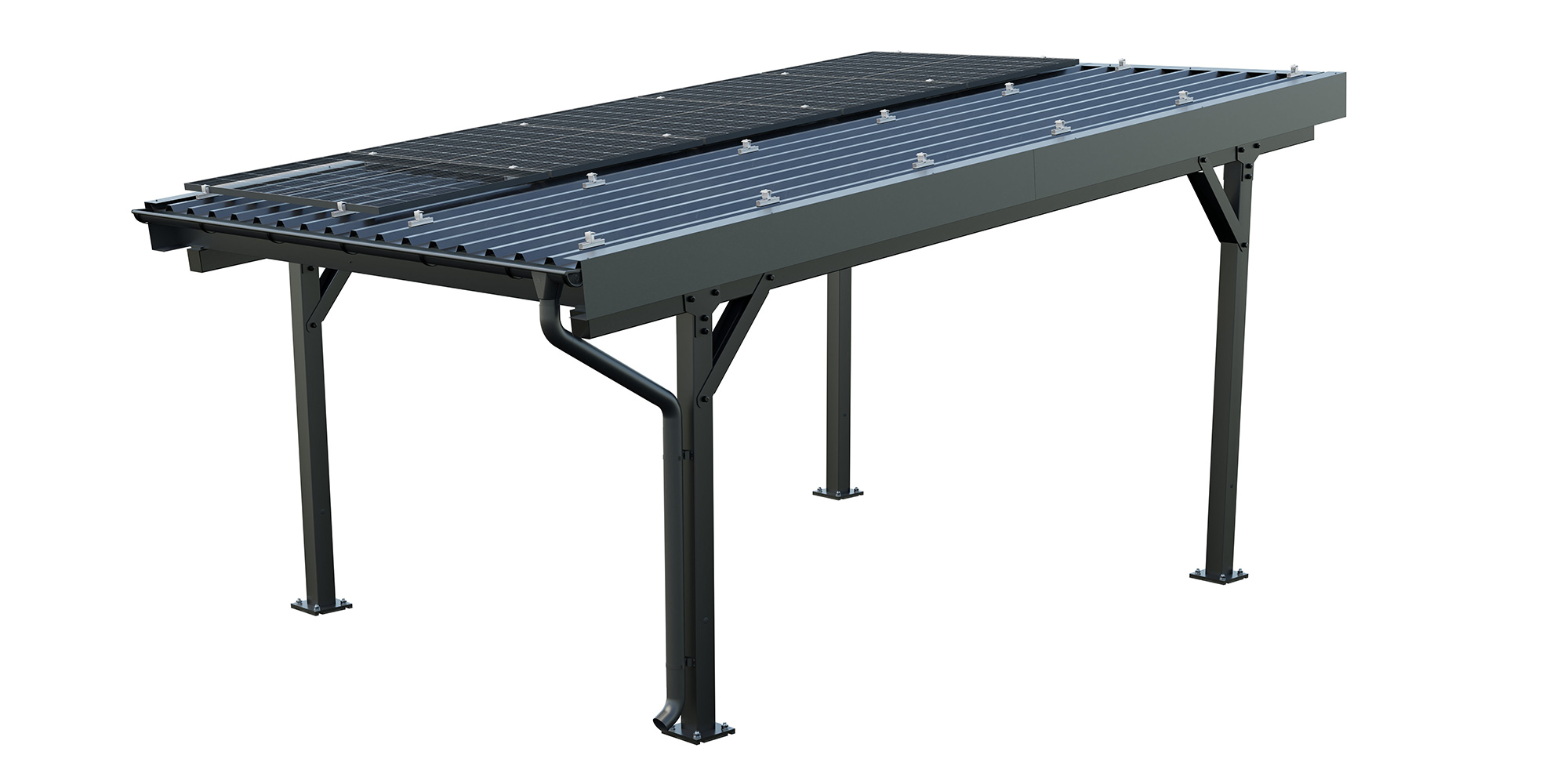

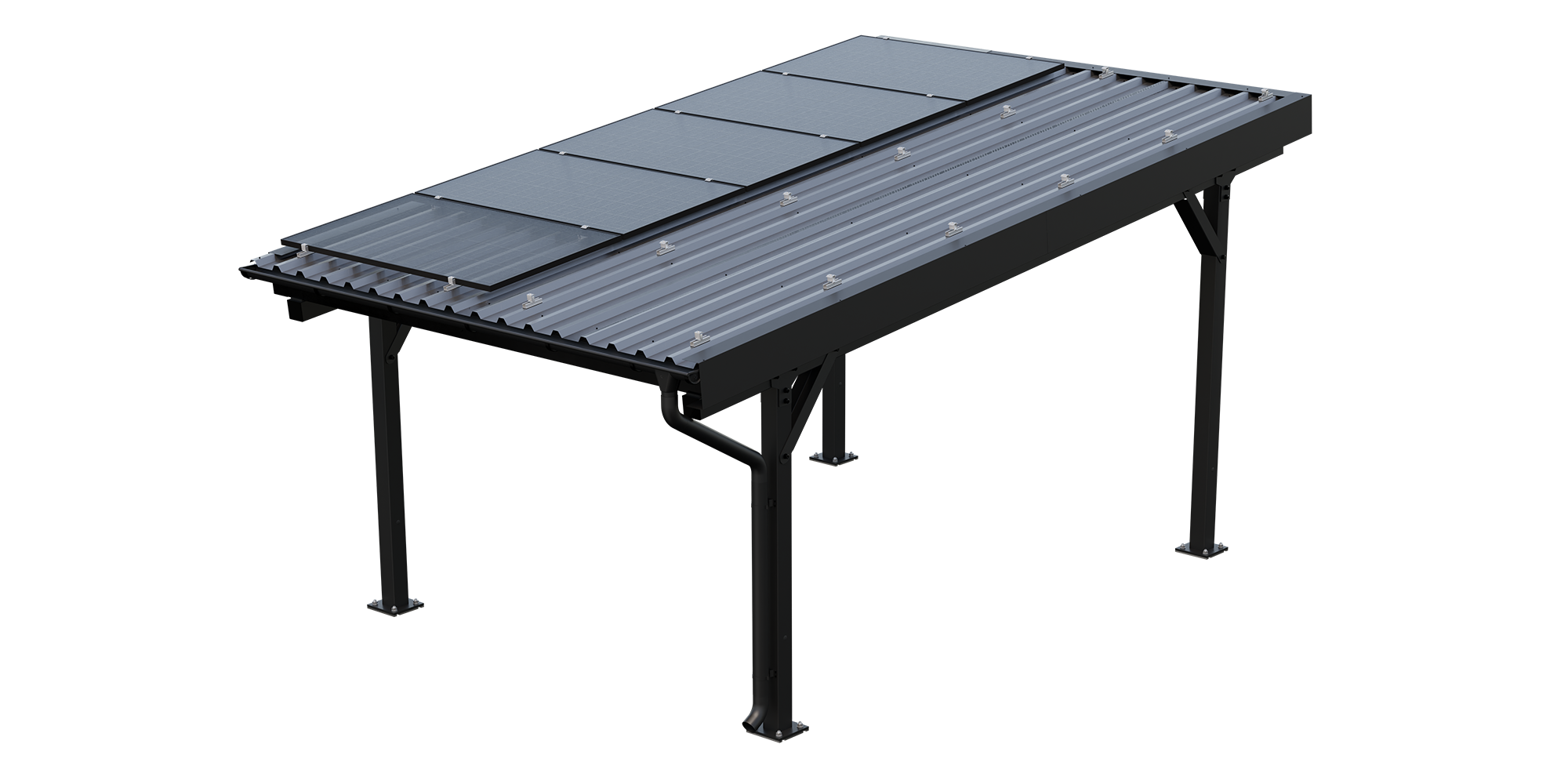

Single: 22 m² / 10 modules

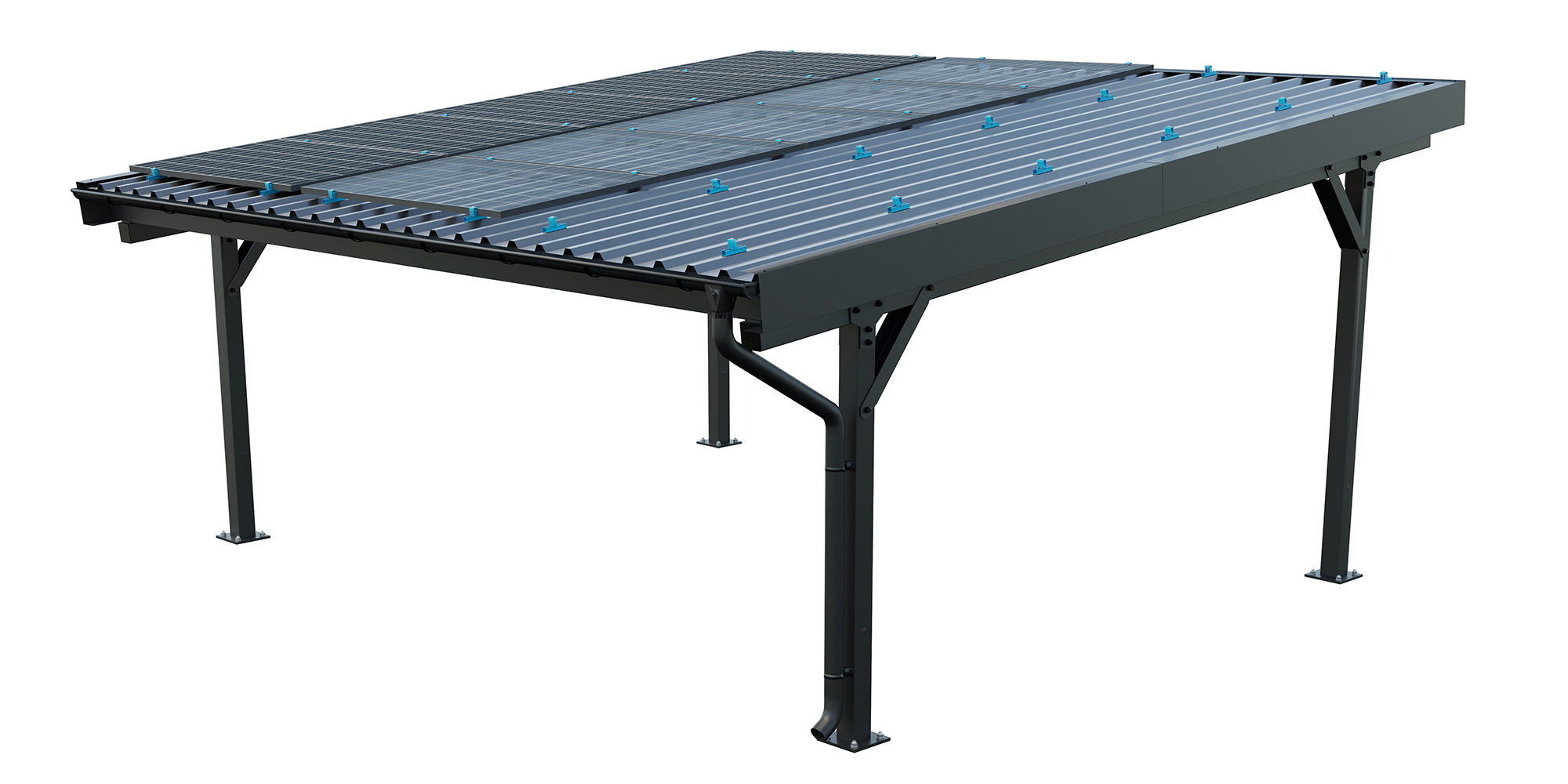

Double: 35 m² / 15 modules
Material:
Carport: hot-dip galvanized steel, powder-coated
Trapezoidal sheet metal: continuous, 0.75 mm thick
Solar fastening: Aluminum
Color:
Anthracite gray (RAL 7016); trapezoidal sheet anthracite
Advantages
Für Eigenheimbesitzer und kleine Gewerbeunternehmen
Modular ausbaubar auf bis zu 24 Stellplätze durch Erweiterungssets
In vielen deutschen Bundesländern genehmigungsfreie Errichtung – für Grenzbebauung geeignet
Schnelle Montage ohne Kran oder Spezialwerkzeug
Materialoptimiertes Konzept mit maximal 6 m langen und 60 kg schweren Bauteilen
Statisch vordimensioniert
PV-Anlagengrößen von ca. 3,8 kW und ca. 5,5 kW pro Single- bzw. Double-Segment
Convenient parking, weather protection and economical generation of your own electricity
sflex carports are available in single and double versions for private users, but can be easily expanded to up to 24 parking spaces with extension sets – without the use of cranes or special tools. This means a PV output of approximately 3.8 kW to around 66 kW. A good foundation for getting started with e-mobility. In addition to carport components such as supports, roof edging, drainage and trapezoidal sheet metal, the scope of delivery includes proven metal roof fastenings from sflex. Plates for attaching inverters and/or charging stations are available as an option.
