S:FLEX Balcony Set Basic

Adjustable PV fastening system for balcony parapets

Data sheet

Assembly instructions

Data

Application:
Metal balcony parapets
Connection:
mechanical attachment to parapet and infill rods
Module type:
framed modules
Module frame height:
30 – 50 mm
Module size (LxW)*:
max. 2279 mm x 1134 mm
Module orientation:
horizontal
Angle of attack:
30°, 35°, 40°, 45°, 50°
Materials:
aluminum and stainless steel, 100% recyclable
Color:
aluminum, black

*Check in advance whether the module can be mounted on the bracket

Advantages

Quick and easy installation
Manually adjustable tilt angle for more power generation
Low weight and attractive appearance
No additional module clamping and no modifications to the module frame required
Easy disassembly and simple reinstallation when relocating

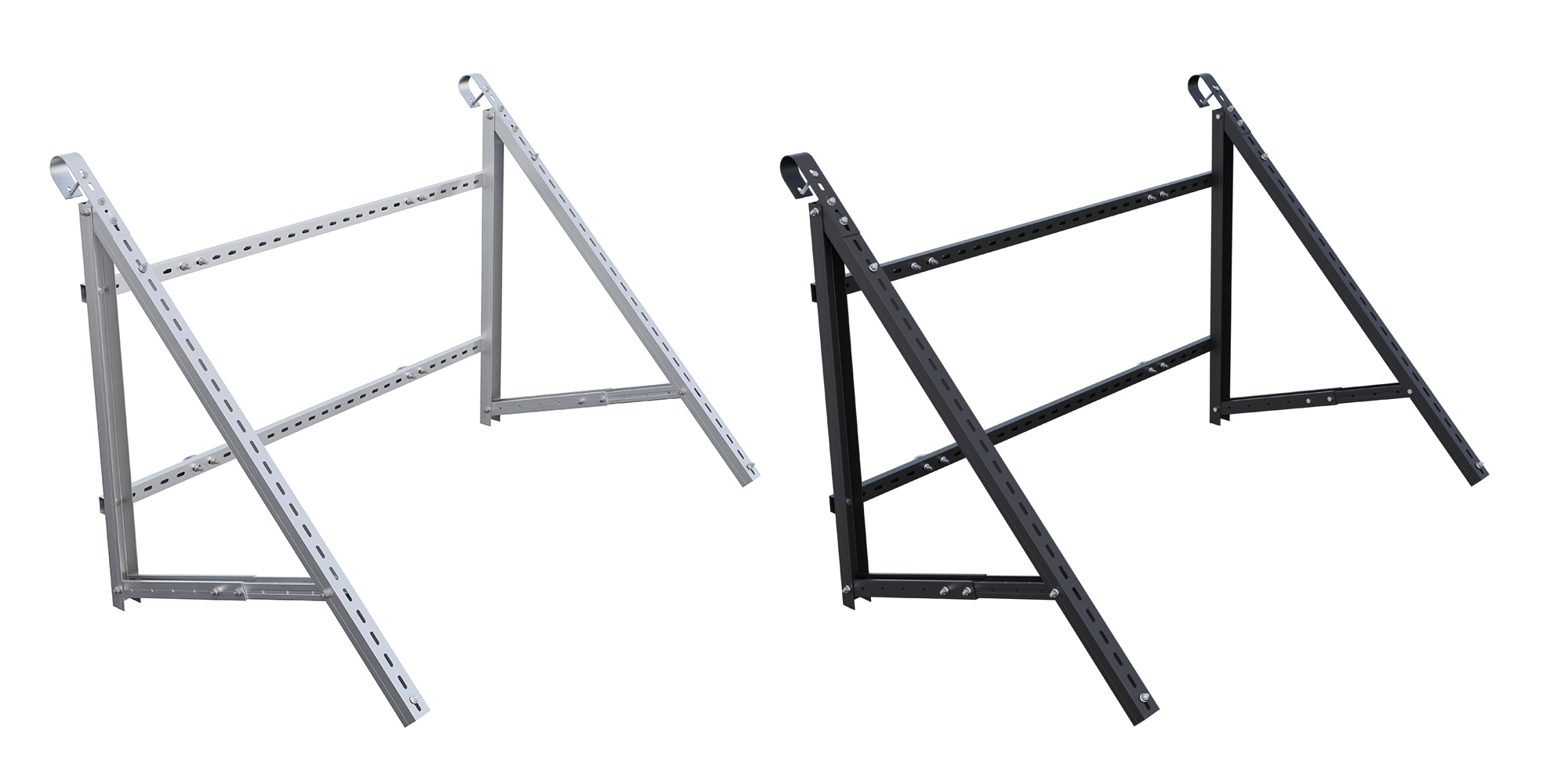

Components

High-quality mounting system, customisable for optimum solar power

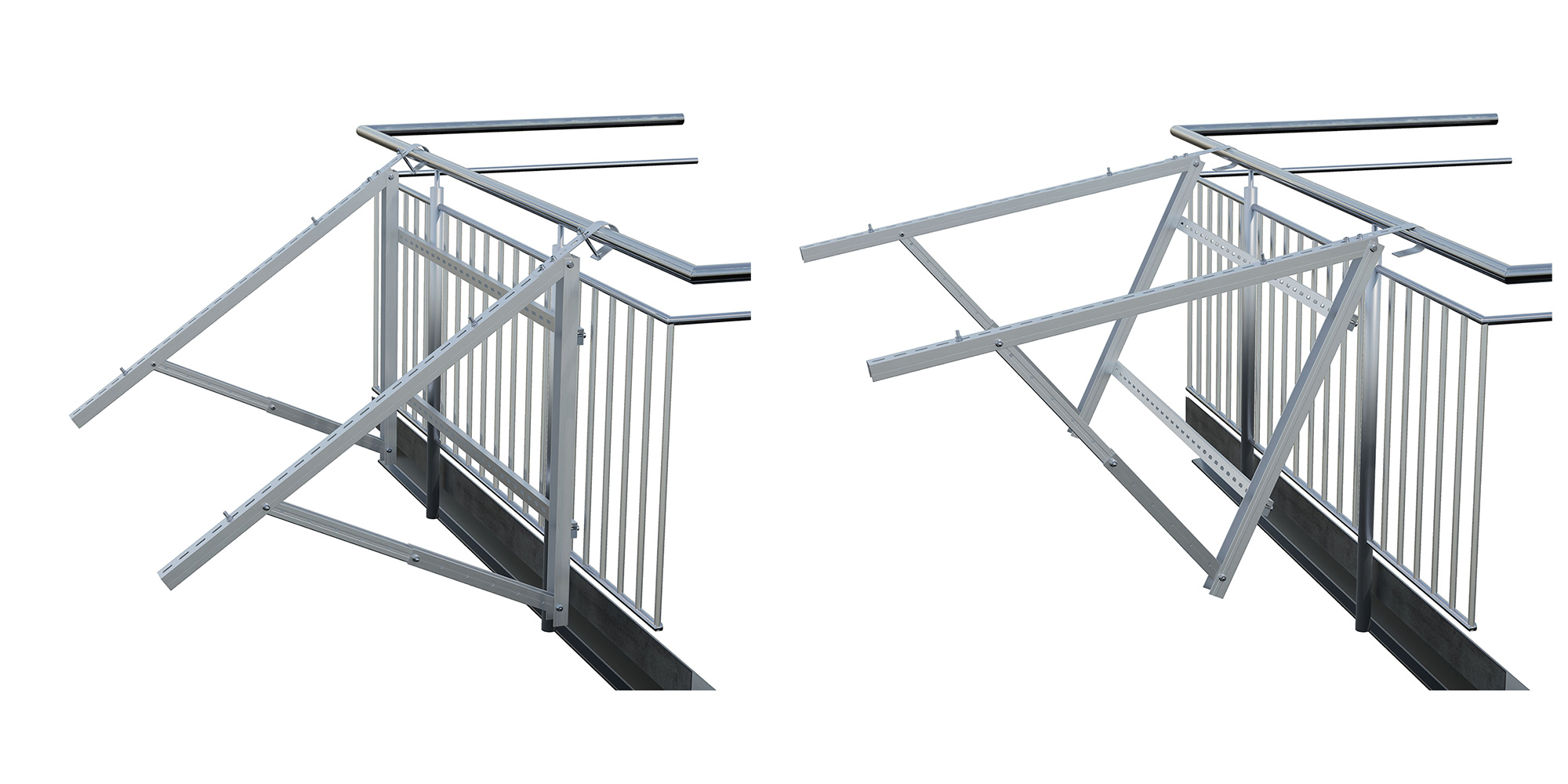

The S:FLEX Balcony Set Basic is the ideal solution for the secure and flexible installation of solar modules on balcony parapets. Thanks to its adjustable design, the mounting system adapts effortlessly to different module sizes and installation requirements – perfect for your balcony power plant.

With individually adjustable tilt angles of 30°, 35°, 40°, 45° or 50°, you can maximise the solar radiation and thus the energy yield. The high-quality aluminium construction ensures durability and stability, even under heavy wind loads and snowfall.

Benefit from a visually appealing and technically sophisticated solution from S:FLEX that adapts flexibly to your local conditions and guarantees simple installation.
